序 號 NO. |
型 號 Model |
寬 度 (B) Width |
高 度 (H) Height |
槽式型kg/米 (托盤型) |
梯式型kg/米 |
備注 Remarks |
| 1 | LQJ-C(P、T)-01-6-2 | 200 | 60 | 5.92 | 5.02 | 槽式(托盤式)橋架寬度500以上需加梯檔加強筋;長度5000、6000只適用于重型橋架；重量B型A型基礎(chǔ)上另加15%，C型在在A型基礎(chǔ)上另加25%。 |
| 2 | LQJ-C(P、T)-01-6-3 | 300 | 60 | 7.83 | 5.42 | |
| 3 | LQJ-C(P、T)-01-6-4 | 400 | 60 | 8.78 | 6.05 | |
| 4 | LQJ-C(P、T)-01-6-5 | 500 | 60 | 9.96 | 6.85 | |
| 5 | LQJ-C(P、T)-01-6-6 | 600 | 60 | 12.75 | 8.15 | |
| 6 | LQJ-C(P、T)-01-6-8 | 800 | 60 | 14.45 | 9.25 | |
| 7 | LQJ-C(P、T)-01-10-2 | 200 | 100 | 6.82 | 5.82 | |
| 8 | LQJ-C(P、T)-01-10-3 | 300 | 100 | 8.55 | 6.15 | |
| 9 | LQJ-C(P、T)-01-10-4 | 400 | 100 | 9.73 | 7.24 | |
| 10 | LQJ-C(P、T)-01-10-5 | 500 | 100 | 10.85 | 8.12 | |
| 11 | LQJ-C(P、T)-01-10-6 | 600 | 100 | 13.75 | 9.65 | |
| 12 | LQJ-C(P、T)-01-10-8 | 800 | 100 | 15.46 | 10.85 | |
| 13 | LQJ-C(P、T)-01-15-3 | 300 | 150 | 9.85 | 7.55 | |
| 14 | LQJ-C(P、T)-01-15-4 | 400 | 150 | 10.72 | 8.32 | |
| 15 | LQJ-C(P、T)-01-15-5 | 500 | 150 | 12.06 | 9.12 | |
| 16 | LQJ-C(P、T)-01-15-6 | 600 | 150 | 13.98 | 10.65 | |
| 17 | LQJ-C(P、T)-01-15-8 | 800 | 150 | 16.48 | 12.42 | |
| 18 | LQJ-C(P、T)-01-20-4 | 400 | 200 | 12.76 | 10.65 | |
| 19 | LQJ-C(P、T)-01-20-5 | 500 | 200 | 14.12 | 11.42 | |
| 20 | LQJ-C(P、T)-01-20-6 | 600 | 200 | 16.58 | 12.65 | |
| 21 | LQJ-C(P、T)-01-20-8 | 800 | 200 | 18.69 | 14.85 |
|

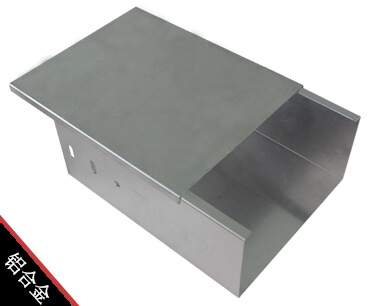

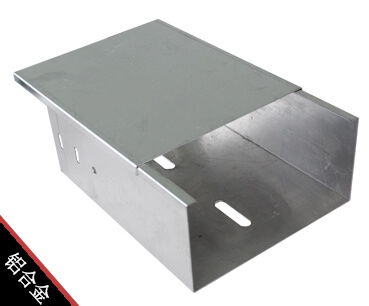

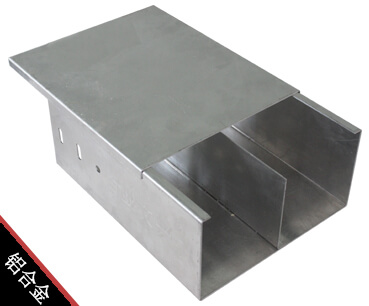

* 鋁合金槽式橋架采用鋁合金擠壓成型，尺寸精度高、強度好、外形美觀、重量輕、承載能力大； * 表面噴砂氧化生成一層天然的氧化保護膜，對大氣和化學(xué)介質(zhì)具有很強的耐腐蝕能力； * 按橋架承載能力分為：A(輕型)、B(中型)、C( 重型)三種；輕、中型最長4000，重型最長6000； |
